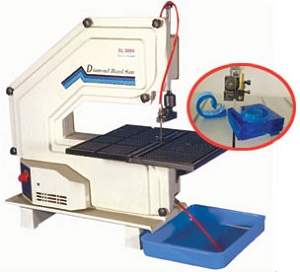

Diamond Laser 5000 Portable Wet Band Saw

Diamond Laser 5000 Portable Wet Band Saw
Click to enlarge image(s)

The DL5000 makes intricate cuts intile, marble, granite, travertine, porcelain and glass up to 3/4” thick with ease, speed and comfort - the key is its three-wheel system. The top wheel assembly pivots on a separate bearing with suppressors controlling its motion. By absorbing more vibration, the saw is capable of extremely effective blade-material contact. With the blade tensioning knob directly connected to the top wheel assembly, accurate adjustments can then be made. This portable band saw is a contractor’s best friend.

Key Features:

  • Long lasting diamond coated stainless steel blades
  • 12” throat for deep diagonal cuts
  • 15” x 13” cutting table with miter guide for precision angle cutting
  • 1/2 HP variable speed motor for more controlled cutting
  • Recirculating water pump with removable water tray keeps saw running clean
  • Rugged and portable for on-site use
  • Available in 2 configurations: glass cutting or tile cutting (select below)
  • Glass Set-Up includes TWO 3/16" (4.5mm) glass blades (140-170 grit) for cutting glass, tile, stone and porcelain, up to 3/4” thick
  • Tile Set-Up includes ONE 1/4" (6.0mm) tile blade (100-200 grit) for cutting tile, marble, granite, travertine and porcelain, up to 3/4” thick
  • Replacement blades are available separately
  • Full Three Year manufacturer warranty, instruction manual and tech support
  • DTI item no. 63TA for Tile Set-Up and 63GA for Glasss Set-Up


Machine of the Month Diamond Laser 5000
"This rugged saw is portable, and it is engineered to execute tight, complex, radius cuts... by absorbing more vibration, the saw is capable of extremely effective blade-material contact." -Stone Word Magazine, June 1999

Specifications
Motor 1/2 horsepower
Voltage 110V ship with standard US 3-prong plug
Speed variable - 3,700 rpm (max)
Overal Dimensions 28"long x 25"wide x 21"high
Product Weight 55 lbs. (20.4 kg)
Table Size 15" x 13"
Throat Height 4"
Throat Depth 12"
Blade Length 61.5" (continuous band)
Blade Thickness 0.015" (0.38 mm)
Blade Depth - Glass 0.17" (4.5 mm)
Blade Depth -Tile 0.25" (6.0 mm)
Minimum Cutting Radius 1/4"
Maximum Recommended Cutting Thickness 3/4" marble/granite/glass
Cutting Speed - 3/8" Ceramic Tile or 1/2" Glass tile 30"/minute
Blade Life Estimate - 3/8" Ceramic tile 50 - 60 cutting hrs.
Blade Life Estimate - Glass 40 - 60 cutting hrs.
Blade Life Estimate - Porcelain 20 cutting hrs.
Manufacturer Diamond Tech International
DTI Item No. DL5630
Warranty THREE YEARS
