Product Details

Gemini Apollo Ring Saw "Glass Set-Up" Kit

Gemini Apollo Ring Saw "Glass Set-Up" Kit

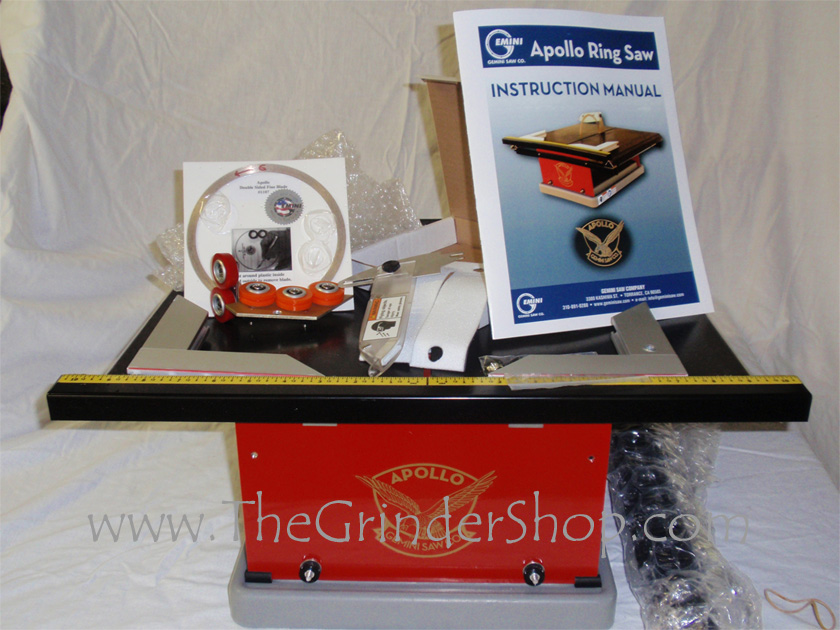

loading sintered blade cartridge6" Fine Double-Sided Sintered Ring Blade Cartridgekit includes ring saw, slide tray, instructions, blade guard, replacement magnetic filter, blade cartridge and 6" ring blade
Click to enlarge image(s)
The new Apollo Ring Saw from Gemini easily cuts through thick pieces of ceramic tile, engineered and natural stone, marble, granite, glass, non-ferrous metals, acrylic, Plexiglas and other materials up to 3 inches thick. It features a whisper quiet heavy duty motor which runs at a much slower RPM than the average wet saw but with far more torque, giving the user a much higher quality cut with far less chipping and in some cases superior blade life. The Apollo Ring Saw uses patented easily interchangeable cartridges to house a full range of wire ring blades, hollow sintered blades and solid sintered blades for a variety of cutting configurations. Pick the blade that best suits your project; from tight intricate cuts to gentle radiuses to fast straight lines = the Apollo Ring Saw can do them all!

Key Features:

  • Has 10 times more power (torque) of standard tile saws!
  • Slice materials up to 3" thick with precision!
  • Cut perfect diagonals up to 16” long!
  • Blade changes are easily performed with the introduction of removable blade cartridges:
  • The wire ring cartridge firmly houses Taurus 3 electroplated ring blades for extreme detail and omnidirectional cutting
  • The sintered ring blade cartridge houses Gemini’s unique hollow double-sided sintered ring blades which have no center, giving you the ability to cut intricate designs, backwards and forwards, with tight radius cuts as small as 1/2"
  • The rigid sintered ring blade cartridge houses rigid sintered ring blades for aggressive straight cuts in all materials
  • INLCUDES Gemini Apollo Ring Saw (item no. GEM-1100) with slide tray, two (2) 45° magnetic angle brackets for diagonal and miter cuts, instruction manual and replacement magnetic filter
  • PLUS a Fine 6" Double-Sided Sintered Ring Blade Cartridge assembly (item no.GEM-0736A) for cutting gentle curves in glass
  • Additional blade cartridges, blades, replacement grommets and other accessories are each sold separately
  • Heavy duty yet portable and light enough for one person to carry
  • Endless length and width capability
  • Completely self-contained water bath, so no water pump is needed
  • Full Two Year manufacturer warranty (excludes wear parts, such as blades, grommets and drive belt, etc.)
Specifications
motor Belt Driven 120V / 60Hz
power 1/3 HP
blade size 4" min / 6" max
length of rip cut unlimited
length of diagonal cut 16"
depth of cut 3" maximum
dimensions L 11" x W 20" x H 21"
weight 36 lbs
manufaturer Gemini Saw Company
Gemini model Apollo "Special Value" Kit
