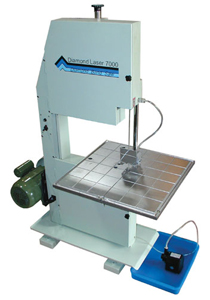

Diamond Laser 7000 Heavy Duty Wet Band Saw

Diamond Laser 7000 Heavy Duty Wet Band Saw
Click to enlarge image(s)
Designed for the studio setting, the Diamond Laser™ 7000 Heavy Duty Wet Band Saw makes precision cuts through marble, granite, tile and glass with ease. The DL7000 is an excellent time saver for artists working in multi-mediums. The easy-to-use features get you cutting quickly, and the large two wheel design creates a 13" throat depth to accommodate glass slab up to 2' wide and 1- 1/2" thick. There are no other saws like the Diamond Laser 7000 on the market today!

Key Features:
  • Cuts tile, stone, marble, porcelain and glass tile up to 1-1/2” thick
  • Heavy-duty industrial design provides durability for production use
  • 3/4 HP motor
  • Large 13” throat depth allows for deep diagonal cuts
  • Performs precision radius cuts for intricate design work
  • Re-circulating water pump keeps saw running clean
  • Large 18” x 18” cutting table
  • INCLUDES one diamond - coated blade; choose either a standard glass blade or a tile blade, below.
  • 7.5mm standard glass blade for cutting art glass, slab glass and glass tile with minimum chipping
  • 8.0mm tile blade makes intricate cuts in marble, granite, ceramic, travertine and porcelain
  • 94” blade length - continuous band
  • Full One Year manufacturer warranty, instruction manual and FREE tech support
  • DTI Item Number: DL0700


  • *Ships via FREIGHT = please allow 7-10 days for delivery
Specifications
Motor 3/4 HP single speed
Voltage 110V
Amperage 7.9 Amps
Motor Shaft Speed 1,400 rpm
Length 38" (with table)
Height 48"
Weight 162 lbs. (73.5 kg)
Table Size 18" x 18"
Throat Depth (depth of cut into field) 13"
Throat Height 8.5" maximum
Blade Length (continuous band) 94.25"
Blade Thickness (kerf) 0.025" (0.64 mm)
Blade Depth - Tile 0.35" (8.0 mm)
Blade Depth - Glass 0.30" (7.5 mm)
Minimum Radius Cut 1/2" - 3/4"
Max. Cutting Thickness - marble/granite 1-1/2"
Max. Cutting Thickness - concrete/limestone/glass 2"
Cutting Speed - 3/4" Marble 8"/minute
Cutting Speed - 3/4" Slab Glass 12"/minute
Blade Life Estimate - 3/4" Marble 40 - 50 cutting hrs.
Blade Life Estimate - 1/4" Glass 40 - 60 cutting hrs.
Blade Life Estimate - 3/8" Porcelain 20 cutting hrs.
Manufacturer Diamond Tech International
DTI Item No. DL7000
