Product Details

Gryphon AquaSaw

Gryphon AquaSaw
Click to enlarge image(s)

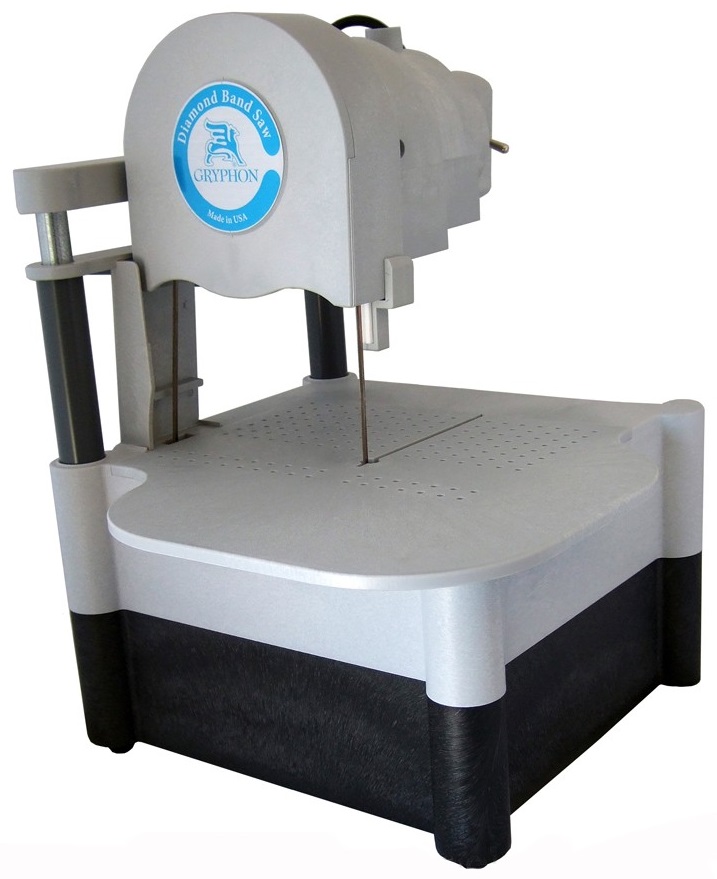

The Gryphon C-40 CR Diamond Band Saw - Corrision Resistant, aka "Aquasaw", is the latest band saw from Gryphon Corporation.  This is the company that invented the whole concept of cutting glass with a band saw over thirty years ago. This new saw has been modified for corrosion resistance, especially for use with salt water while cutting coral or similar material. Additional stainless steel parts and added shielding reduce corrosion and extend the life of the saw.

This saw is supplied with a stainless steel blade in place of the standard copper blade.


Key Features:
  • Makes fragging corals a snap!
  • INCLUDES one Stainless Steel 37" long diamond coated blade - safe for marine organisms
  • Simple construction with few moving parts
  • New High Speed Motor for fastest cutting available
  • Direct drive - no belts or pulleys
  • Powerful motor located on top, away from the water
  • Huge water reservoir under the work surface
  • One square foot of unobstructed work surface
  • Under table blade guide and new blade guide above table
  • Standard Blade for art glass and tile cutting available separately
  • Fuser's Blade for multiple layers of fused glass and stone cutting available separately
  • Full One Year manufacturer warranty
  • Made in the USA!
Available by SPECIAL ORDER with a 220V motor and EU-style plug; please allow 1-2 weeks for us to get one from the manufacturer
Specifications
Motor 1/3 hp Direct Drive DC
Voltage 110 vac
Frequency 50/60 hz
Current 1 amp
Motor Speed 2,200 rpm
Blade Speed 40 mph
Platform Area 12"x12"
Saw Height 17-5/8"
Throat Depth 5-1/4"
Throat Height 2-5/8" with upper blade guide installed
Maximum Throat Height 3-7/8" with upper blade guide removed
Coolant System Recirculating tap water - no additives required
Coolant Reservoir 10"x9"
Tension Adjustment Single Knob - Semi-automatic
Blade Dimensions 37" circumference, 0.020" wide, 0.140" deep
Shipping Weight 18 lbs
Manufacturer Gryphon Corp.
Warranty 1 Year
Model C-40 CR
