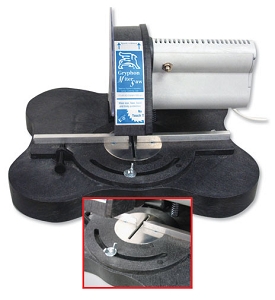

Gryphon Miter Saw

Gryphon Miter Saw
Click to enlarge image(s)
The Gryphon Miter saw is particularly well suited for making premium cuts in thin wall extrusions of brass, zinc, steel and copper. It has a very fine abrasive blade which cuts cleanly and coolly resulting in a minimum of flash.

The saw is used largely in the stained glass (for cutting the "came" used to join separate pieces of glass) and the automotive fields (for cutting tubing of all types including braided stainless hose). A large adjustable table provides settings for accurate angles. The chop saw design along with the built in clamp for the work and safety shield provide protection to the operator.

Key Features:
  • Simple construction
  • Powerful 1.1 peak hp direct drive motor
  • Large 13"x15" work surface
  • Delivers clean cuts even on composites and braided stainless steel
  • Chop saw design is fast and convenient
  • Miter table adjusts easily a full ±45º angle of cut with protractor scale
  • Simple thumbscrew clamp holds your work securely to the fence while cutting
  • Ultra-thin abrasive blade provides very clean and quick cuts
  • Easy one-hand operation
  • Made in USA
  • One year manufacturer warranty
Specifications
Blade - abrasive 5.625" diameter, fiberglass reinforced, 0.035" thick
Blade - toothed 5.625" diameter, steel
Power 110 volts AC
Motor Permanent Magnet DC
Motor Speed when no load 7,000 RPM
Motor Speed when cutting 5,500 RPM
Motor Power at peak 1.1 HP
Motor Power when cutting 0.5 HP typical
Warranty One Year
Manufacturer Gryphon Corp.
Model Name Miter Saw
