Product Details

Gemini Apollo Ring Saw

Gemini Apollo Ring Saw

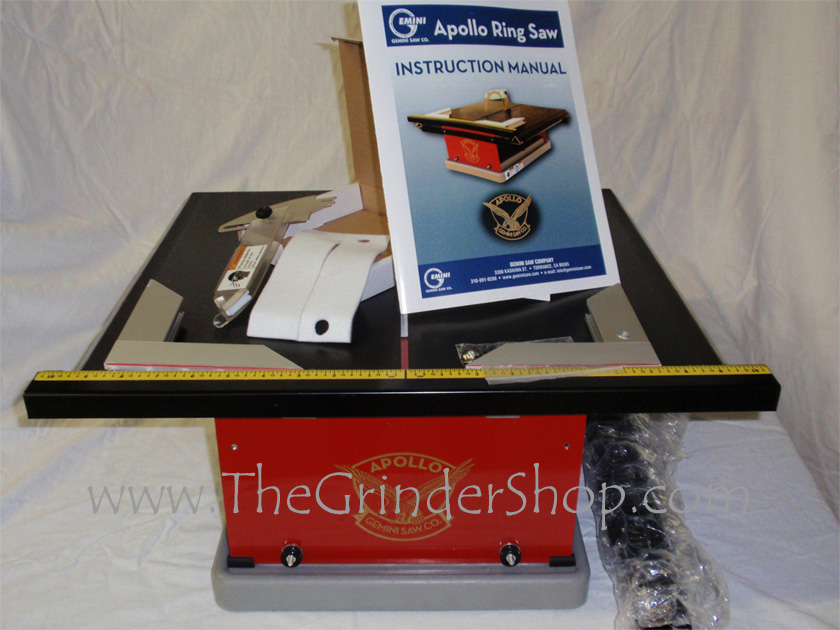

motor and saw arrives assembledslide tray kit comes in a separate boxsaw, slide tray, instructions, blade guide and replacement magnetic felt filter
Click to enlarge image(s)
The new Apollo Ring Saw from Gemini easily cuts through thick pieces of ceramic tile, engineered and natural stone, marble, granite, glass, non-ferrous metals, acrylic, Plexiglas and other materials up to 3 inches thick. It features a whisper quiet heavy duty motor which runs at a much slower RPM than the average wet saw but with far more torque, giving the user a much higher quality cut with far less chipping and in some cases superior blade life. The Apollo Ring Saw uses patented easily interchangeable cartridges to house a full range of wire ring blades, hollow sintered blades and solid sintered blades for a variety of cutting configurations. Pick the blade that best suits your project; from tight intricate cuts to gentle radiuses to fast straight lines = the Apollo Ring Saw can do them all!

Key Features:

  • Has 10 times more power (torque) of standard tile saws!
  • Slice materials up to 3" thick with precision!
  • Cut perfect diagonals up to 16” long!
  • Blade changes are easily performed with the introduction of removable blade cartridges:
  • The wire ring cartridge firmly houses Taurus 3's standard, fine or slim electroplated diamond blades for extreme detail and omni-directional cutting
  • The sintered ring blade cartridge houses Gemini’s unique hollow double-sided sintered ring blades which have no center, giving you the ability to cut intricate designs, backwards and forwards, with tight radius cuts as small as 1/2"
  • The rigid sintered blade cartridge houses rigid sintered ring blades for aggressive straight cuts in all materials

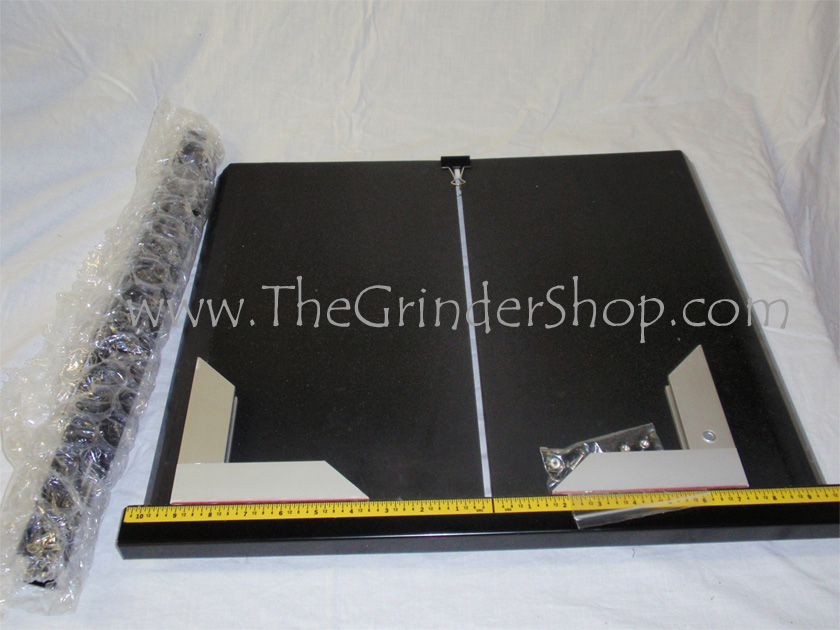

  • INCLUDES slide tray
  • INCLUDES two (2) 45° magnetic angle brackets for diagonal and miter cuts
  • Does NOT include cartridges or blades (each sold separately)
  • Heavy duty yet portable and light enough for one person to carry
  • Endless length and width capability
  • Completely self-contained water bath, so no water pump is needed
  • Full Two Year manufacturer warranty (excludes wear parts, such as blades, grommets and drive belt, etc.)
Available with a 220V motor and an EU-style or an AUS-style plug; please select below.

Available as part of the Gemini Apollo "Glass Set-Up" Kit (see item no. GEM-1102) and "Tile Set-Up" Kit (see item no. GEM-1105)
Specifications
motor Belt Driven 120V / 60Hz
power 1/3 HP
motor speed 5,000 RPM
blade speed 1,500 RPM
blade size 4" min / 6" max
ring blade kerf 0.040 inches
wire blade kerf 0.050 (slim) and 0.072 (standard) inches
length of rip cut unlimited
length of diagonal cut 16"
material thickness 3" maximum
dimensions L 11" x W 20" x H 21"
weight 32 lbs.
manufaturer Gemini Saw Company
Gemini model Apollo
